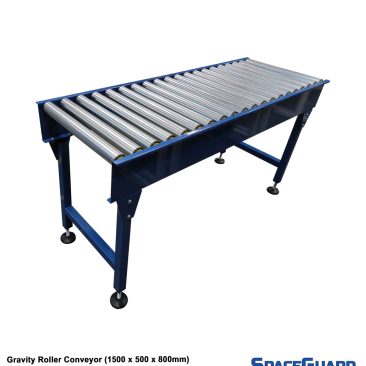

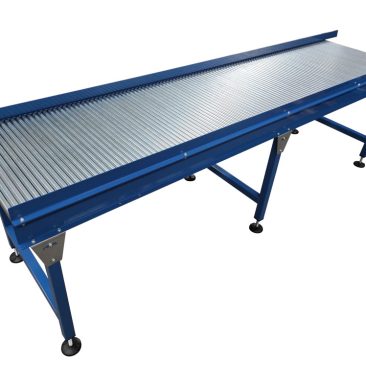

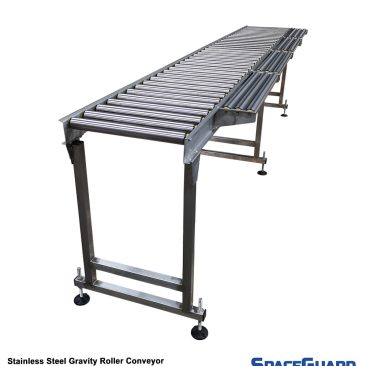

Straight Gravity Roller Conveyors
Roller Type:
- Mild steel Zinc plated
- PVC
- Stainless Steel
Â
Frames Material:
- Mild Steel Powder Coated
- Stainless Steel
Â
Roller Diameters:
- 20mm, 30mm, 40mm, 50mm, 60mm, 63mm, 76mm, 80mm, 89mm, 102mm
Phone:Â 01482 363445 Email:Â sales@spaceguard.co.uk
Request a Free Quote or Site Visit
Please fill in the form below, and a Spaceguard specialist will contact you to find out about your exact needs, possibly schedule a site visit and/or provide a comprehensive quote.Â
If you would like a quote immediately, please provide some details about what you need including dimensions where possible. If you don’t know exactly what you need, just let us know what you’re trying to achieve and we will help you find the most suitable products.
We make fully bespoke gravity conveyors, designed and manufactured in-house in the UK to meet your exact requirements. Choose from a large selection of roller types and benefit from short lead times. All of our conveyors are delivered fully assembled or can be installed by our site team.
Please contact our sales team to discuss your specific requirements on 01482 363445 or email sales@spaceguard.co.uk
What do you need from your gravity conveyors?
Do you need storage, packaging dispensers, IT integration, or accessories?
We will offer advice if you need any help.
Once you know what you want, send it over to us.
Our expert in-house design team will then produce 3D drawings & renders so you can visualise your gravity conveyors clearly.
At this point, you can make changes as necessary before finalising the design.
Once you’re happy with it we can discuss your preferred payment method & terms.
Once payment terms have been agreed, our skilled manufacturing team will build your gravity conveyors.
You can have them installed or shipped directly to you from our East Yorkshire factory.
| Mild steel Zinc plated |
| PVC |
| Stainless Steel |
| Mild Steel Powder Coated |
| Stainless Steel |
| 20mm |
| 30mm |
| 40mm |
| 50mm |
| 60mm |
| 63mm |
| 76mm |
| 80mm |
| 89mm |
| 102mm |
| Roller Diameter | 20mm |
| Roller Material | PVC |
| Roller Pitches | 22mm Note:Â As a guide, rigid based items should have a minimum of 3 rollers underneath the product. More flexible items will require roller support |
| Roller Bearing | Plastic housed semi precision |
| Frame Detail | 60mm deep |
| Frame Material | Painted mild steel or stainless steel for food applications |
| Frame Thickness | 2.0mm |
| Conveyor Finish | RAL 5010 – Other colours available |
| Conveyor Widths | 100 to 500mm |
| Conveyor Loading | 5kg per meter |
| Support Detail | Welded ‘H’ section (+/- 50mm) |
| System Components |
|
| Roller Diameter | 30mm |
| Roller Material | PVC |
| Roller Pitches | 32mm, 64mm Note:Â As a guide, rigid based items should have a minimum of 3 rollers underneath the product. More flexible items will require roller support |
| Roller Bearing | Plastic housed semi precision |
| Frame Detail | 60mm deep |
| Frame Material | Painted mild steel or stainless steel for food applications |
| Frame Thickness | 2.0mm |
| Conveyor Finish | RAL 5010 – Other colours available |
| Conveyor Widths | 100 to 500mm |
| Conveyor Loading | 15kg per meter |
| Support Detail | Welded ‘H’ section (+/- 50mm) |
| System Components |
|
| Roller Diameter | 50mm |
| Roller Material | Mild steel zinc plated, PVC |
| Roller Pitches | 53mm, 78mm, 104mm, 130mm, 156mm (+26mm) Note:Â As a guide, rigid based items should have a minimum of 3 rollers underneath the product. More flexible items will require roller support |
| Roller Bearing | Plastic housed semi precision |
| Frame Detail | 100mm deep |
| Frame Material | Painted mild steel |
| Frame Thickness | 2.5mm |
| Conveyor Finish | RAL 5010 – Other colours available |
| Conveyor Widths | 100 to 1000mm |
| Conveyor Loading | 50kg per meter |
| Support Detail | Welded ‘H’ section (+/- 50mm) |
| System Components |
|
| Roller Diameter | 50mm |
| Roller Material | Mild steel zinc plated |
| Roller Pitches | 53mm, 78mm, 104mm, 130mm, 156mm (+26mm) Note:Â As a guide, rigid based items should have a minimum of 3 rollers underneath the product. More flexible items will require roller support |
| Roller Bearing | Steel housed semi precision |
| Frame Detail | 100mm deep |
| Frame Material | Painted mild steel or Stainless steel |
| Frame Thickness | 4.0mm |
| Conveyor Finish | RAL 5010 – Other colours available |
| Conveyor Widths | 100 to 1000mm |
| Conveyor Loading | 100kg per meter |
| Support Detail | Welded ‘H’ section (+/- 50mm) |
| System Components |
|
| Roller Diameter | 63mm |
| Roller Material | Mild steel zinc plated |
| Roller Pitches | 78mm, 104mm, 130mm, 156mm (+26mm) Note:Â As a guide, rigid based items should have a minimum of 3 rollers underneath the product. More flexible items will require roller support |
| Roller Bearing | Steel housed precision |
| Frame Detail | 100mm deep |
| Frame Material | Painted mild steel or Stainless steel |
| Frame Thickness | 4.0mm or 6.0mm |
| Conveyor Finish | RAL 5010 – Other colours available |
| Conveyor Widths | 100 to 1300mm |
| Conveyor Loading | Up to 1200kg per meter |
| Support Detail | Welded ‘H’ section (+/- 50mm) |
| System Components |
|
| Ball Diameter | 22mm |
| Ball Material | Mild steel zinc plated |
| Ball Pitches | 52mm, 78mm, 104mm (+26mm) |
| Roller Bearing | Steel housed precision |
| Frame Detail | 100mm deep |
| Frame Material | Painted mild steel or Stainless steel |
| Frame Thickness | 4.0mm |
| Conveyor Finish | RAL 5010 – Other colours available |
| Conveyor Widths | 80m to 2000mm |
| Conveyor Loading | Up to 250kg per meter |
| Support Detail | Welded ‘H’ section (+/- 50mm) |
| Ball Layout | Square or Diamond |
Roller Type:
Â
Frames Material:
Â
Roller Diameters:
Bend Angles:
Roller Type:
Frame Material:
Inside Radius:
Roller Diameter:

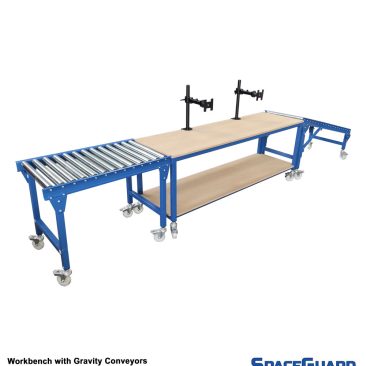

Gravity roller conveyors are ideal for the inclusion into assembly or order fulfilment work stations. Including the use of roller conveyors results in the reduction of manual handling, and subsequently the improvement of personnel working ergonomics.
The workstation can also include packing aids, scales, lighting, and IT equipment, and as a result yields additional productivity improvements.
These units are designed to suit your specific requirements. Ideal in this case to improve productivity and ergonomics whilst also reducing operator manual handling, giving ongoing payback on your investment.

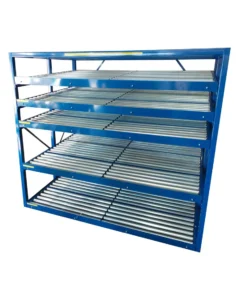

Gravity roller racking provides an ideal solution for assembly cells and also order fulfillment lines. It is up to 80% more productive compared to conventional static racking.
The use of Carton flow racking also allows staff to be more productive by reducing manual handling. As a UK manufacturer Spaceguard is able to build first in first out, or push back racking, to suit your specific products.

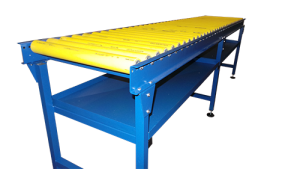

As well as bespoke roller conveyors, Spaceguard also manufactures products for managing waste fluids. For example, coolants and oils.
In this area Spaceguard has many years of experience. We also deliver solutions which safely and cleanly manage liquids within your production areas.
Previous uses include for example, aircraft wheels, and machined engine parts. Also for paint production, and oil manufacturing. Delivering to you robust special application roller conveyors which especially suit your needs.
The 30 º and 45 º Roller Conveyor Merge is used to bring two conveyor lines together.
Flexible conveyors expand and flex allowing them to bend to suit the environment or application. They are mounted on castors for ease of maneuverability.
Roller Type:
PVC
Zinc Plated Steel
Roller Diameter:
40mm, 50mm
Variable Lengths:
Open lengths – 1.5 to 9m
Closed lengths – 0.510m – 2.576m
Height:
Adjustable with variable height ranges from 470mm to 1530mm
Telescopic Conveyors are used for loading and unloading of goods.Telescopic Roller Conveyors are found in warehouses, package distribution, loading, and delivery areas.
Side Frame Material:
Mild Steel
Side Frame Finish:
Powder Coated
Roller Material:
PVC in decks
Mild steel zinc plated on transfer sections and loading area.
Roller Diameter:
50mm (20mm for transfer sections)
Roller Pitch:
65mm
Roller Diameter:
50mm (20mm for transfer sections)
Roller Pitch:
65mm
The conveyor lift up gate. Allows for access through fixed conveyor lines. These are generally for warehouse pathways or emergency access routes.
Spaceguard lift up gates are manufactured using a pivot bush. Giving additional strength to the gate. The weight of the gate section is supported by industrial gas springs. This as a result makes the gate light to operate. When positioning the gate – note should be taken to the product on the conveyor. To ensure it doesn’t fall off.
Incidentally it may be possible to use the gate section as a stop. This section of roller track should also only be used in horizontal applications with either gravity or driven roller.

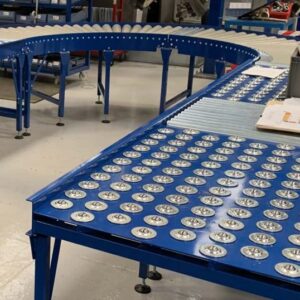

Ball Transfer Tables have rolling balls instead of straight parallel rollers. They’re ideal for use with loading or feeding machines or for moving goods & materials.
Frame:
Welded Mild Steel
Ball Diameter:
22mm
Ball Pitch:
150mm, 100mm, 75mm, 52mm
Load Rating:
40kg per ball
Ball Table Configuration:
Square or Diamond

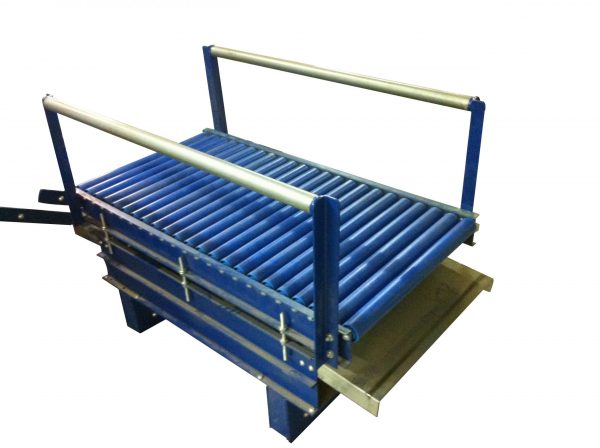

The Roller Conveyor Transfer Car runs on floor mounted tracks to travel between the gravity lines. Built to suit application, for example, board handling.

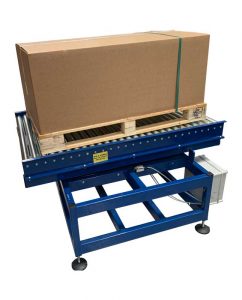

For changing the direction or turning items, can be used as part of a gravity roller conveyor system.

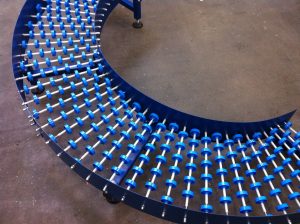

An alternative to gravity rollers is skate wheels. Skate wheels are suitable for lighter loads, and are available in zinc plated steel or PVC. They generally move faster than standard rollers, and are used for flat bottom items. They can also handle items that are wider than the width of the conveyor.Â

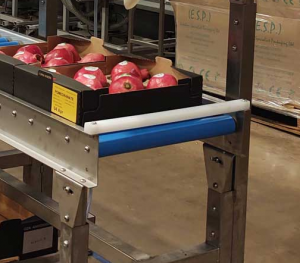

Fixed End Stop – Bar fixed across the end of conveyor to stop product
Roller End Stop – Used to aid in removing product from the end of the conveyor
Roller Brake – Used to stop a bank of rollers for production accumulation.
Â
The Conveyor rollers used within Gravity roller conveyors ordinarily have a spring loaded shaft for easy removal, or a female threaded shaft.
As well as gravity roller conveyors, Spaceguard manufactures a full range of powered (driven) roller conveyors for transport and accumulation applications.
Please see the expanding tables below for more information about our standard gravity conveyors. We manufacture to order so please contact us if you require a bespoke conveyor, or would like further advice on specifying your conveyor.

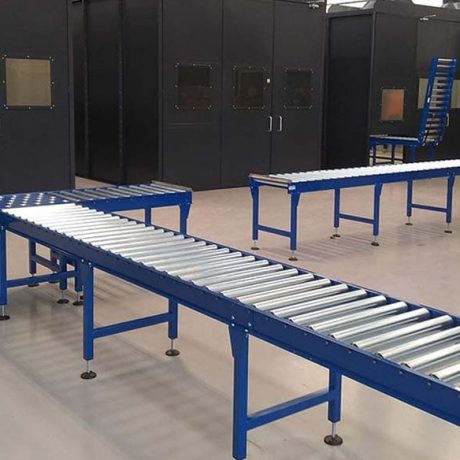

A gravity conveyor is an un-powered roller conveyor which uses either manual force, or gravity decline to move products along the conveyor. As a rule, when used on an incline the product must have sufficient weight to allow the conveyor rollers to turn. Additional braking may be required if particularly heavy loads are used.
Please see our full conveyor product range for other types of roller conveyor.
