Supplied by Spaceguard for all industrial environments

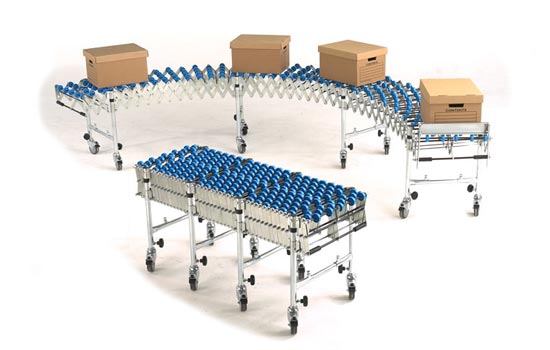

Flexible conveyors offer a versatile and cost effective solutions for applications including vehicle loading & unloading. Along with use with packaging and assembly lines which need to be reconfigured due to space restrictions.
These gravity roller conveyors are ideal for reducing turn around times. Whether you require them hourly to load packaged items on vans or as part of your production process. The flexible conveyor offers increases in efficiency. Whilst having the benefit of re-configuration and space saving when closed up for storage.
Please see our full conveyor range to see more conveyor options.
Please contact our sales team to discuss your requirements.
Phone: 01482 363445
Email: sales@spaceguard.co.uk
| Side Frame Material | Mild steel |
|---|---|
| Side Frame Finish | Bright Zinc plated |
| Skate Wheel Diameter | 48mm |
| Skate Wheel Material | PVC |
| Skate Wheel Pitch | 125mm when fully extended (pitch restrictions options available for smaller products) |
| Skate Wheel Rating | PVC 40mm= 15kg, PVC 50mm= 20kg & PVC 60mm= 60kg BZP 40mm= 80kg, BZP 50mm= 80kg & BZP 60mm= 80kg |
| Standard Heights | 470-700mm, 580-900mm, 670-1100mm (popular size), 850-1425mm & 920-1500mm |
| Standard Widths | 300, 400, 500, 600, 700, 800, 900, 1000 & 1200mm |
| Standard Lengths | 1,500mm open – (510mm closed) 2,000mm open – (626mm closed) 3,000mm open – (900mm closed) 3,500mm open – (1,016mm closed) 4,500mm open – (1,290mm closed) 5,000mm open – (1,406mm closed) 6,000mm open – (1,680mm closed) 6,500mm open – (1,796mm closed) 7,500mm open – (2,070mm closed) 8,000mm open – (2,186mm closed) 9,000mm open – (2,460mm closed) 9,500mm open – (2,576mm closed) |
| Series options / accessories | End stop plate & End stop roller Drop down Endstop plate & Drop down Endstop roller Connecting hooks Mobile support stands – fully adjustable 100mm & 125mm diameter castor options Dump Table / Impact Table Can be joined by other conveyors to make system |
| Side Frame Material | Mild steel – Extra knee bracing on this Heavy duty model |
|---|---|
| Side Frame Finish | Bright Zinc plated |
| Roller Diameter | 40mm or 50mm |
| Skate Wheel Diameter | 48mm |
| Roller / Skate Wheel Material | PVC & Mild steel BZP |
| Roller / Skate Wheel Pitch | 125mm when fully extended (pitch restrictions options available for smaller products) |
| Standard Heights | 470-700mm (lattice changes on this low height), 580-900mm, 670-1100mm (popular size), 850-1425mm & 920-1500mm |
| Standard Widths | 300, 400, 500, 600, 700, 800, 900, 1000 & 1200mm |
| Standard Lengths | Roller model: 1,500mm open – (740mm closed) 2,000mm open – (940mm closed) 3,000mm open – (1,360mm closed) 3,500mm open – (1,560mm closed) 4,500mm open – (1,980mm closed) 5,000mm open – (2,180mm closed) 6,000mm open – (2,600mm closed) 6,500mm open – (2,800mm closed) 7,500mm open – (3,220mm closed) 8,000mm open – (3,420mm closed) 9,000mm open – (3,840mm closed) 9,500mm open – (4,040mm closed)Skate wheel model: 1,500mm open – (510mm closed) 2,000mm open – (626mm closed) 3,000mm open – (900mm closed) 3,500mm open – (1,016mm closed) 4,500mm open – (1,290mm closed) 5,000mm open – (1,406mm closed) 6,000mm open – (1,680mm closed) 6,500mm open – (1,796mm closed) 7,500mm open – (2,070mm closed) 8,000mm open – (2,186mm closed) 9,000mm open – (2,460mm closed) 9,500mm open – (2,576mm closed) |
| Series options / accessories | End stop plate & End stop roller Drop down Endstop plate & Drop down Endstop roller Connecting hooks Mobile support stands – fully adjustable 100mm & 125mm diameter castor options Dump Table / Impact Table Can be joined by other conveyors to make system |
| Side Frame Material | Mild steel |
|---|---|
| Side Frame Finish | Bright Zinc plated |
| Roller Diameter | 40mm or 50mm |
| Roller Material | Mild steel BZP |
| Roller Pitch | 125mm when fully extended (pitch restrictions options available for smaller products) |
| Standard Heights | 470-700mm, 580-900mm, 670-1100mm (popular size), 850-1425mm & 920-1500mm |
| Standard Widths | 300, 400, 500, 600, 700, 800, 900, 1000 & 1200mm |
| Standard Lengths | 1,500mm open – (620mm closed) 2,000mm open – (780mm closed) 3,000mm open – (1130mm closed) 3,500mm open – (1290mm closed) 4,500mm open – (1640mm closed) 5,000mm open – (1800mm closed) 6,000mm open – (2150mm closed) 6,500mm open – (2310mm closed) 7,500mm open – (2660mm closed) 8,000mm open – (2820mm closed) 9,000mm open – (3170mm closed) 9,500mm open – (3330mm closed) |
| Series options / accessories | End stop plate & End stop roller Drop down Endstop plate & Drop down Endstop roller Connecting hooks Mobile support stands – fully adjustable 100mm & 125mm diameter castor options Dump Table / Impact Table Can be joined by other conveyors to make system |
| Side Frame Material | Mild steel |
|---|---|
| Side Frame Finish | Bright Zinc plated |
| Roller Diameter | 40mm or 50mm |
| Roller Material | Mild steel BZP |
| Roller Pitch | 125mm when fully extended (pitch restrictions options available for smaller products) |
| Standard Heights | 470-700mm, 580-900mm, 670-1100mm (popular size), 850-1425mm & 920-1500mm |
| Standard Widths | 300, 400, 500, 600, 700, 800, 900, 1000 & 1200mm |
| Standard Lengths | 1,500mm open – (620mm closed) 2,000mm open – (780mm closed) 3,000mm open – (1130mm closed) 3,500mm open – (1290mm closed) 4,500mm open – (1640mm closed) 5,000mm open – (1800mm closed) 6,000mm open – (2150mm closed) 6,500mm open – (2310mm closed) 7,500mm open – (2660mm closed) 8,000mm open – (2820mm closed) 9,000mm open – (3170mm closed) 9,500mm open – (3330mm closed) |
| Series options / accessories | End stop plate & End stop roller Drop down Endstop plate & Drop down Endstop roller Connecting hooks Mobile support stands – fully adjustable 100mm & 125mm diameter castor options Dump Table / Impact Table Can be joined by other conveyors to make system |
| Side Frame Material | Mild steel |
|---|---|
| Side Frame Finish | Bright Zinc plated |
| Roller Diameter | 40mm or 50mm |
| Roller Material | Mild steel BZP |
| Roller Pitch | 125mm when fully extended (pitch restrictions options available for smaller products) |
| Standard Heights | 470-700mm, 580-900mm, 670-1100mm (popular size), 850-1425mm & 920-1500mm |
| Standard Widths | 300, 400, 500, 600, 700, 800, 900, 1000 & 1200mm |
| Standard Lengths | 1,500mm open – (620mm closed) 2,000mm open – (780mm closed) 3,000mm open – (1130mm closed) 3,500mm open – (1290mm closed) 4,500mm open – (1640mm closed) 5,000mm open – (1800mm closed) 6,000mm open – (2150mm closed) 6,500mm open – (2310mm closed) 7,500mm open – (2660mm closed) 8,000mm open – (2820mm closed) 9,000mm open – (3170mm closed) 9,500mm open – (3330mm closed) |
| Series options / accessories | End stop plate & End stop roller Drop down Endstop plate & Drop down Endstop roller Connecting hooks Mobile support stands – fully adjustable 100mm & 125mm diameter castor options Dump Table / Impact Table Can be joined by other conveyors to make system |
| Side Frame Material | Mild steel |
|---|---|
| Side Frame Finish | Bright Zinc plated |
| Roller Diameter | 40mm or 50mm |
| Roller Material | Mild steel BZP |
| Roller Pitch | 125mm when fully extended (pitch restrictions options available for smaller products) |
| Standard Heights | 470-700mm, 580-900mm, 670-1100mm (popular size), 850-1425mm & 920-1500mm |
| Standard Widths | 300, 400, 500, 600, 700, 800, 900, 1000 & 1200mm |
| Standard Lengths | 1,500mm open – (620mm closed) 2,000mm open – (780mm closed) 3,000mm open – (1130mm closed) 3,500mm open – (1290mm closed) 4,500mm open – (1640mm closed) 5,000mm open – (1800mm closed) 6,000mm open – (2150mm closed) 6,500mm open – (2310mm closed) 7,500mm open – (2660mm closed) 8,000mm open – (2820mm closed) 9,000mm open – (3170mm closed) 9,500mm open – (3330mm closed) |
| Series options / accessories | End stop plate & End stop roller Drop down Endstop plate & Drop down Endstop roller Connecting hooks Mobile support stands – fully adjustable 100mm & 125mm diameter castor options Dump Table / Impact Table Can be joined by other conveyors to make system |
Every system is designed and manufactured to order in the UK. Tell us what you need and our team will help you spec it and send a fast, free quotation.
The main feature of the flexible conveyor is that it can be moved easily and positioned within minutes.
Simply wheel the conveyor into position, expand it out, straight or around bends as you require.

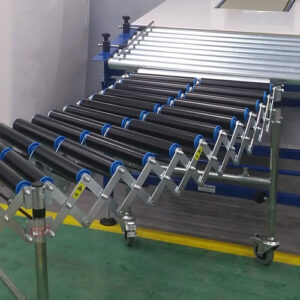

This flexible conveyor is manufactured using a lattice side frame, which enable it to be stretched out around corners with ease. The conveyor can be used either on their own, and also to connect existing solutions in warehouse despatch areas, shops or assembly lines.

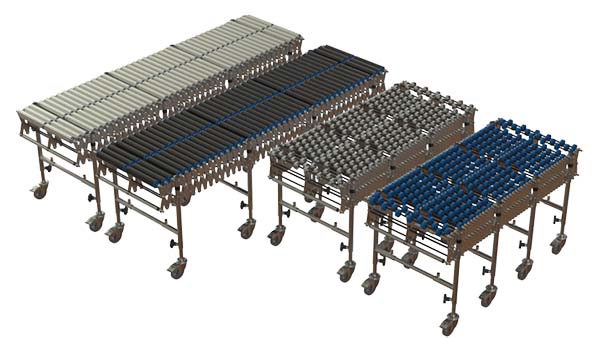

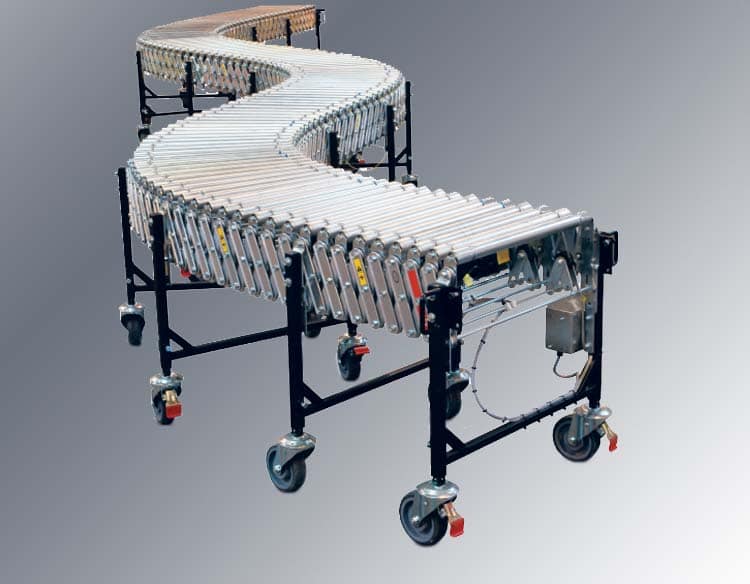

Flexible conveyors are designed for transporting parcels. With roller options including plastic skate wheels, PVC conveyor rollers or zinc plated rollers. Together with build options for standard duty gravity roller, heavy duty gravity and driven roller.
| Caster: | Swivel lockable wheels fixed to the stands for easy conveyor movement. |
| Connecting hooks: | Used to fix the conveyor to the next unit or conveyor. |
| End stop: | Fitted to the out feed end of conveyor to stop boxes |
| Lattice: | The steel expanding side frame section. |
| PVC Roller: | Full width roller with 50mm diameter PVC tube. Suitable for larger light packages. |
| Skate wheel: | Low inertia wheel for free lower product weight conveying. |

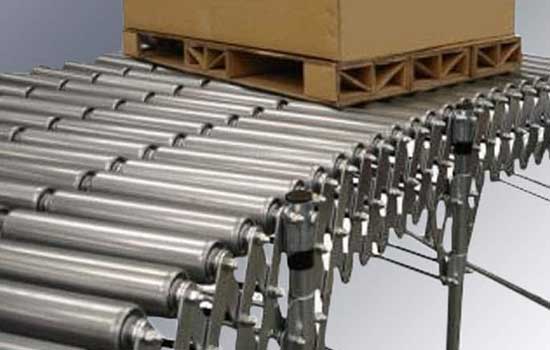

| Steel roller: | Fully width roller with 50mm diameter mild steel zinc plated tube. Suitable for heavier loads. |
Flexible and expandable conveyors are great for quick conveyor configuration for loading and unloading in environments with limited space.
